How to show check mark in the form

Follow

This lesson will show you how to create a simple check list using a multiple questions with multiple answer that will appear on the generated form. Please note this is for advanced users only, if your not comfortable with Word get in contact with a partner and they will be able to build the form for you.

Click Forms under Settings menu

Click Forms under Settings menu

Click Add Form

Click Add Form

Enter the form details

Enter the form details

Create form questions and details

Create form questions and details

Once complete, click Save

Once complete, click Save

Using MS Word, open the document template that you want to link with the form

Using MS Word, open the document template that you want to link with the form

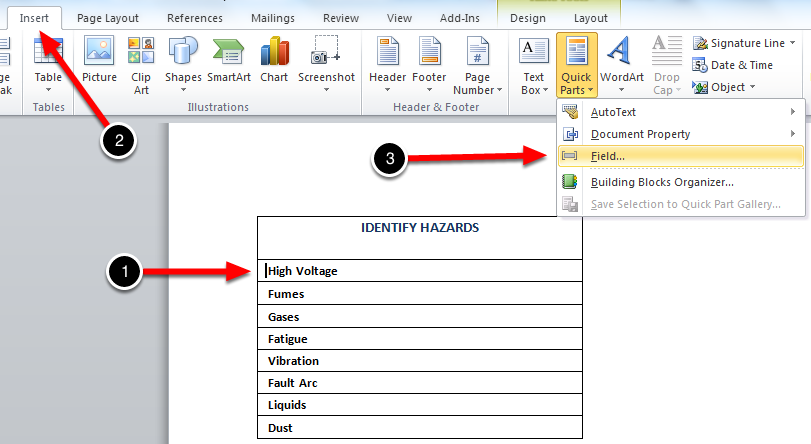

From the check list, select a row with the answer and click Insert > Quick Parts > Field

From the check list, select a row with the answer and click Insert > Quick Parts > Field

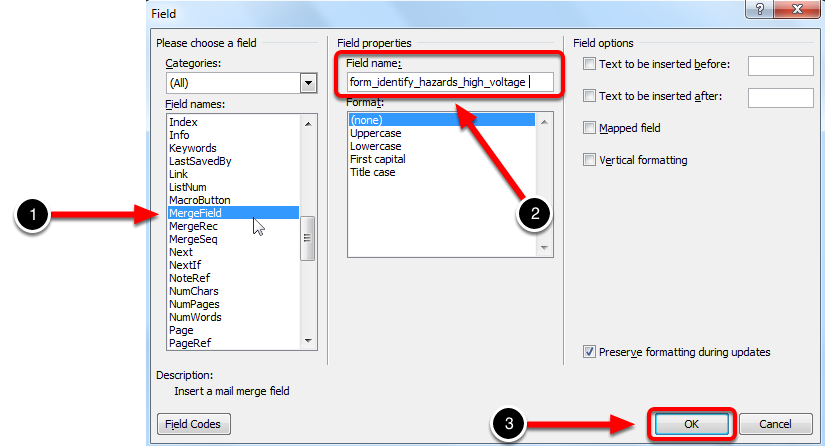

Select MergeField, enter the Field Name and click OK

Select MergeField, enter the Field Name and click OK

Please note that the field name used is the combination of the form's template field code and multiple choice's answer.

For instance, the "form_identify_hazards" is the form template field code and "High Voltage" is one of the answers.

Use this format when entering the field name, make sure all spaces are replaced with a '_': form_(Question Field)_(Answer name)

Select the MergeField that you just created

Select the MergeField that you just created

With the MergeField selected, Press Ctrl + F9 to initiate IF field statement

With the MergeField selected, Press Ctrl + F9 to initiate IF field statement

Note: After pressing Ctrl+F9 it will insert a special open and close curly brackets (normal curly brackets will NOT work) then you can start using the IF conditional statement. If you are on Mac, simply press Command + Fn + F9 or Command + F9 to enable the IF statement feature.

The IF field compares two values and then inserts the text appropriate to the result of the comparison. When using a multi-choice multi answer field, ServiceM8 returns a value of 'Yes' when that corresponding answer is selected. So the IF statement in this case simple is saying, if the field = yes then put a tick.

Enter the IF statement syntax properly as shown below

Enter the IF statement syntax properly as shown below

Follow the same steps to the next questions and answer field codes. When you are finished save the document template and upload it into your ServiceM8 account.

IF statement: {IF "Form Field"="Yes" "Tick" ""}

TIP: To produce a tick in word hold Alt and type 10004, then release Alt.

That's it! You should be able to show the tick or check mark in the forms' output

That's it! You should be able to show the tick or check mark in the forms' output
